Author Topic: Help needed - H1 Globes for SG XS  (Read 397 times)

May 22, 2016, 01:33:58 PM
Read 397 times

divan

  • Full Member

  • Offline
  • ***

  • 214
    • View Profile
    • Email
Howsit guys,

I need some assistance from someone that has a facelift SG, which uses the H1 globes.  When I bought my car in 2012 I fitted an aftermarket HID kit with ballasts.  In order to fit it, the spade on the ground wire had to be cut off and the fitting in the Osram kit used.  Now 4 years later I want to fit normal halogen bulbs again, but for the life of me I cannot remember where to ground the globes.  The globes only have one connector (presumably live), but now I need to ground the unit.  I basically just need a photo of the two connections so that I can recommission my lights.

Thanks in advance.

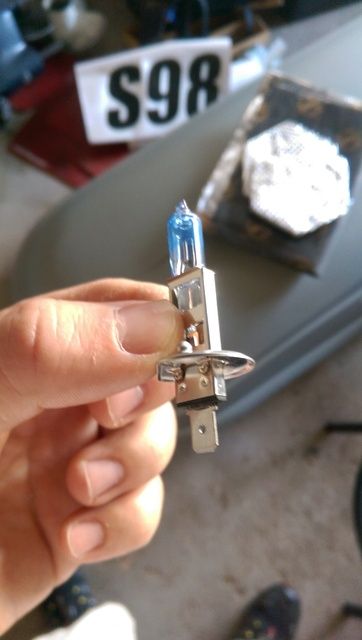

Standard H1 globe with only one spade

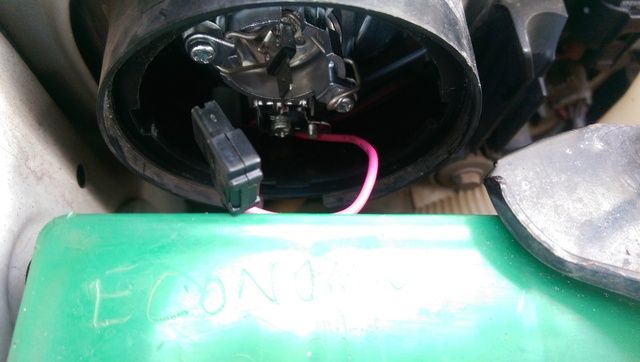

Globe fitted, live wire with connector visible, but no place to fit ground.
« Last Edit: May 22, 2016, 01:36:12 PM by divan »
10 Subaru Outback 2.5i Premium
04 Subaru Forester XSel

ex:
07 Subaru Forester XS
05 Subaru Forester XT

Richards Bay - KwaZulu Natal

May 22, 2016, 09:13:12 PM
Reply #1

berndp

  • Hero Member

  • Offline
  • *****

  • 1155
    • View Profile
    • Email
Hi divan,
The peuter housing should have a ground connector on it.
Bottom pic: what's that "lip" above the red wire?
Subaru Forester 2005 2.5 Xsel
Always looking for a tar free "road"
Brackenfell, W'Cape

May 23, 2016, 01:43:05 PM
Reply #2

divan

  • Full Member

  • Offline
  • ***

  • 214
    • View Profile
    • Email
Hi Bernd,

Thank you for your reply.  I have removed the peuter housing but no such luck.  If all else fails I will probably just fit a round lug to the ground wire and secure it to the housing with one of the screws.

I think that lip is the attachment point for the cover that sits in front of the globe in the housing, but I will just check it again tonight.
